Low Energy Consumption Adsorption Dryer
Compressed Air Dryer

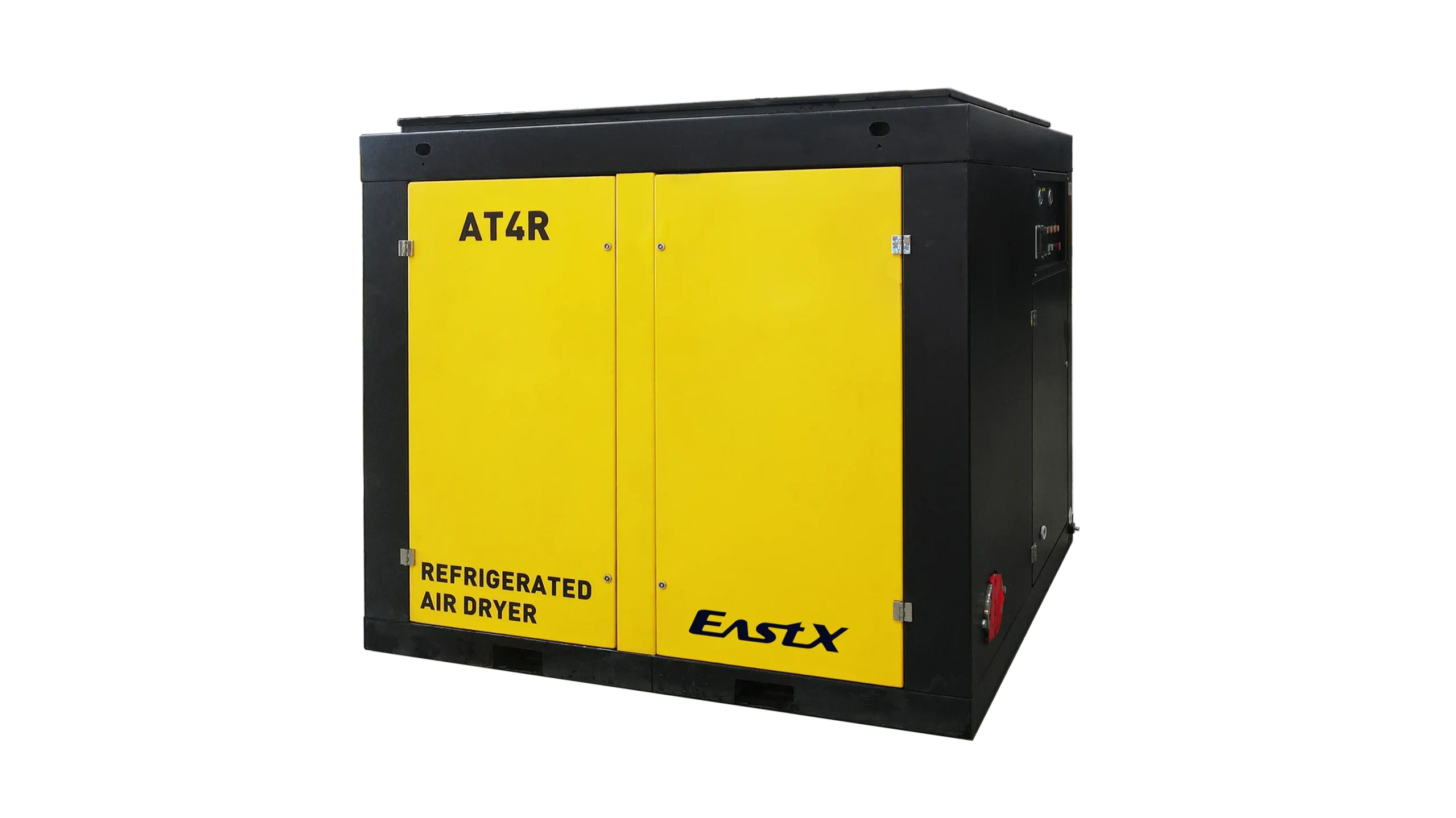

AT4R refrigerated air dryer is suitable for high-temperature industrial environments (Max 45℃). It uses the environmentally friendly refrigerant R407C, with a processing capacity of up to 45m³/min, driven by a 380V industrial power supply. It achieves efficient compressed air dehumidification with a low power consumption of 12kW, ensuring stable operation of the drying system.
| Model | AT4R |
|---|---|
| Nominal Flow Rate (m³/min) | 45 |
| Applicable Ambient Temperature | ≤ 45 ℃ |
| Refrigerant Type | R407C (HFC Environmentally Friendly Type) |
| Refrigerant Charge (kg) | 9.5 |
| Rated Voltage/Frequency | 380V/50Hz |
| Total Power (kW) | 12 |
| Pressure Dew Point | 3 ℃ ± 2 ℃ |
| Start-Up Mode | Fully Automatic Temperature-Controlled Start/Stop |
Features
- Supports 45m³/min compressed air treatment, meets the needs of medium to large production lines
- Tolerates ambient temperatures up to 45℃, suitable for harsh workshop conditions
- Refrigerant R407C (charge amount 9.5kg), complies with international environmental standards
- 380V/50Hz power supply, seamlessly compatible with factory power systems
Advantages
- 12kW rated power, energy consumption reduced by 15%-20% compared to similar models
- Continuous operation in high temperature environments, reducing downtime risks due to overheating
- Free from ozone-depleting substances, helping companies pass ESG (Environmental, Social, Governance) audits
