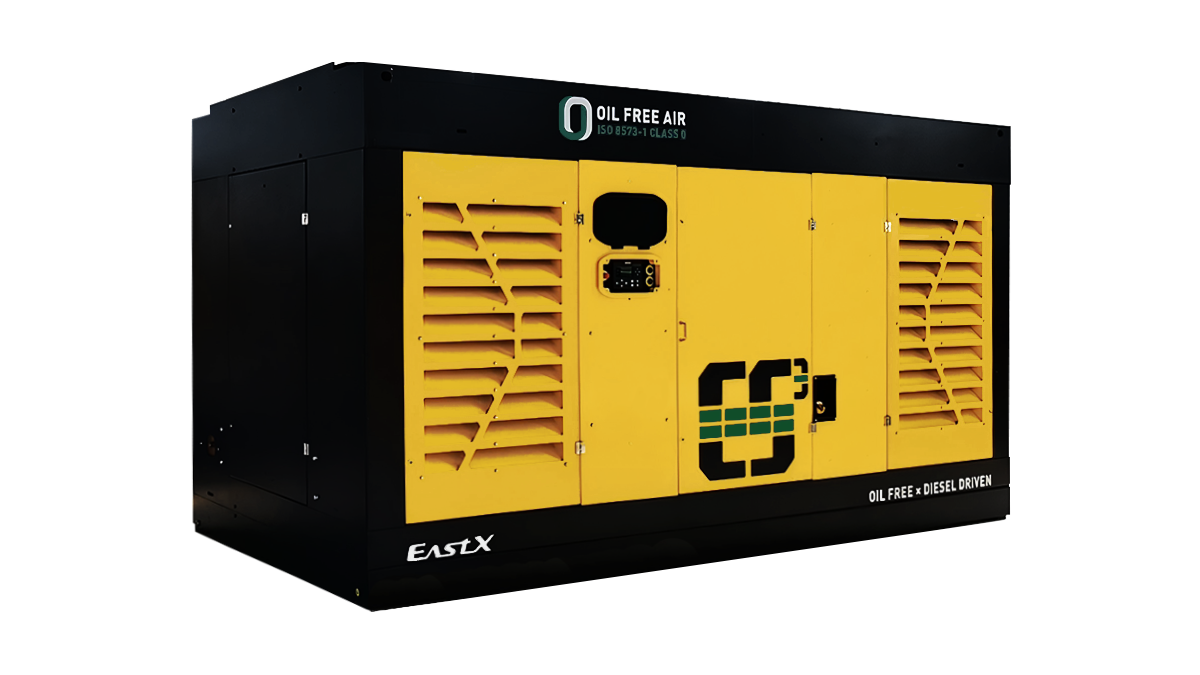

Diesel-driven Oil-Free Air Compressor
Diesel-driven Oil-Free Compressor
The all-season diesel-driven oil-free air compressor is specially developed for the compressor rental market. It is suitable for various complex outdoor environments, with core components sourced from internationally renowned brands. It outperforms foreign brands in multiple aspects, including energy efficiency, noise control, temperature regulation, and operational stability.
| Nominal Air Flow (Adjustable) | Max: 51.2 m³/min; Min: 32.1 m³/min |
|---|---|
| Pressure Range | 0.1 - 1.2 Mpa |
| Dimensions | 4880 × 2300 × 2700 mm |
| Weight | 9500 kg / 11500 kg |
| @1m Sound Pressure Level | 90 dB（A） |
| Rated Power | 563 kW @ 2100 r/min |
| Emission Standard | China Stage III |
| Built-in Fuel Tank Capacity | 3 m³ / 2 m³ / 1 m³ (optional) |
| Model | ES3 |
| Brand | EAST-X |
| Manufacturer | Shandong EASTX Compressor Co., Ltd. |
Features
· Customized for the compressor rental market, suitable for all seasons, with flexible scheduling to ensure high uptime.
· Diesel-driven, air-cooled design with ultra-low fuel consumption—highly efficient and energy-saving to reduce operating costs.
· “Mogulinker” IoT platform supports remote monitoring and alerts, providing real-time insights into unit operating status.
· Equipped with an anti-spill frame, wind- and rain-proof cover, and spark arrestor—multiple layers of protection for safe, reliable operation.
Advantages
· Oil-free, diesel-driven design with integrated cooling protection—effortlessly adapts to demanding outdoor environments.
· Core components sourced from internationally renowned brands, ensuring efficient and stable performance.
· Multiple models precisely matched to various flow and pressure requirements, with professional training and inspection services included.
· Built-in large fuel tank for extended continuous operation, enhancing on-site construction efficiency.
