PSA Nitrogen Generator

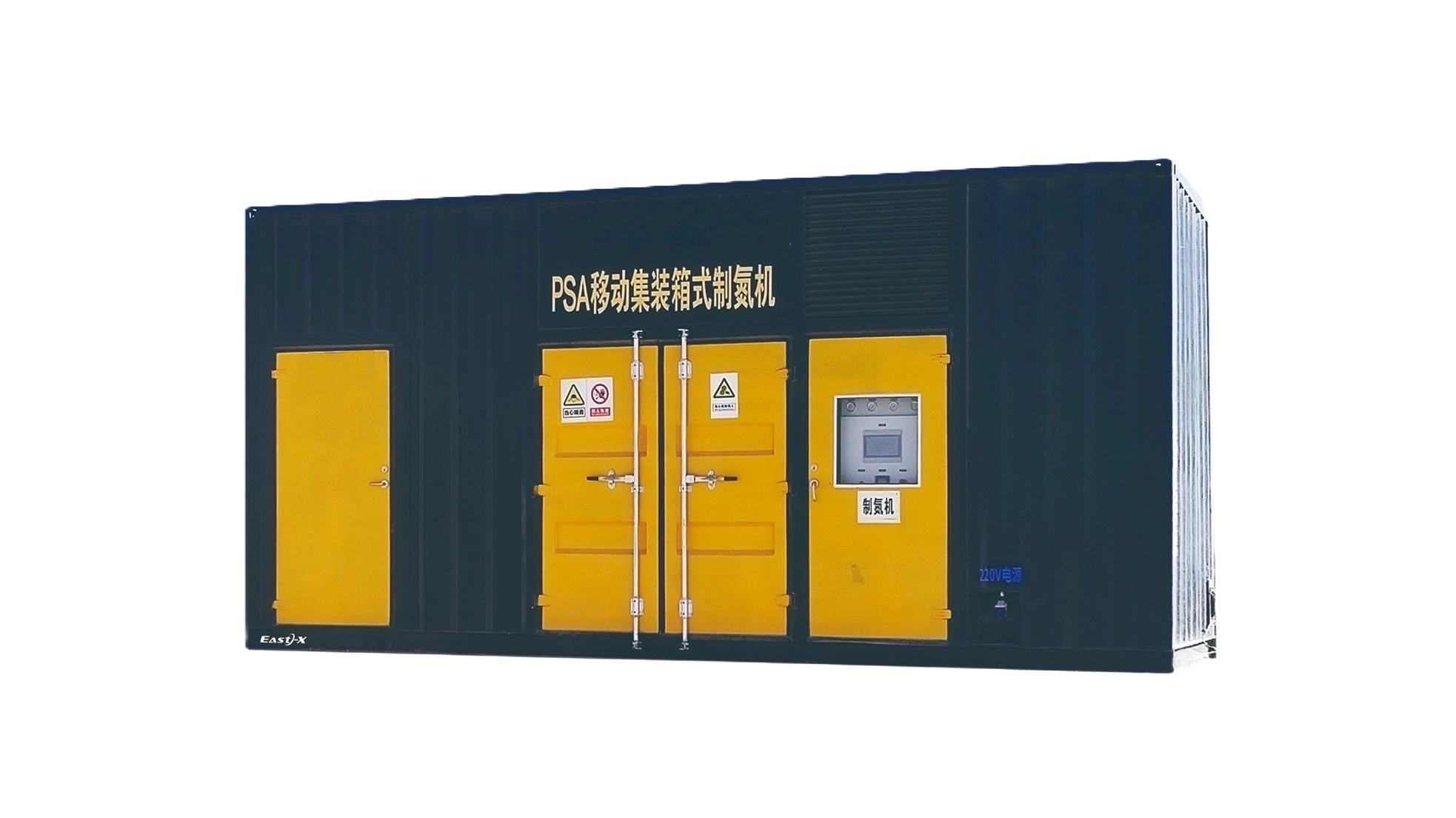

PSA Mobile Containerized Nitrogen Generator
PSA mobile containerized nitrogen generator can produce 99%, 99.9%, or 99.99% high-purity nitrogen. The equipment is designed in containerized containers, suitable for indoor/outdoor use, and can be used in parallel with multiple units according to gas demand. It is widely used in industries such as oil and gas, electronics, etc.
| Model | HYN21000 | NSH400 | N500 | N1000 |
|---|---|---|---|---|
| Inlet Pressure (bar(e)) | 7~9 | 6.5~10 | 7~10 | 7~10 |
| Nitrogen Purity (%) | 99 / 99.9 / 99.99 | 99 / 99.9 / 99.99 | 99 / 99.9 / 99.99 | 99 / 99.9 / 99.99 |
| Gas Production (Nm³/h) | 1000 / 600 / 400 | 500 / 309 / 200 | 500 / 380 / 250 | 1000 / 760 / 500 |
| Dimensions (mm) | 7000 × 2350 × 3200 | 3500 × 3300 × 3200 | 2500 × 2300 × 2650 | 4200 × 2300 × 2650 |
| Net Weight (kg) | 17000 | 9000 | 8000 | 14000 |
Features
· Supports 99% / 99.9% / 99.99% nitrogen purity options, with dynamic output adjustment based on purity level
· Integrated container frame with wind and rain protection, ensuring stable long-term operation in harsh outdoor environments
· N500/N1000 models cover nitrogen demands from small and medium to large-scale applications
· Performance tested in strict accordance with ISO1217 international standards to ensure data reliability
Advantages
· The N1000 model delivers up to 1000 m³/h at 99% purity, meeting large-scale gas demand in electronics manufacturing, chemical industries, and more
· Compact containerized design enables plug-and-play installation, reducing setup costs
· Wide inlet pressure range of 7–10 bar(e) with a constant 8.5 bar(e) outlet pressure ensures downstream equipment compatibility
· Fully enclosed protective structure reduces environmental corrosion, extending equipment lifespan and lowering maintenance frequency
